What you need:
- Crystal Super headset
- Screwdriver
- Screws x6 (in the box)
- Comfort Top Strap
Overview
- Peel off the foam cover: Peel off the foam covering the top strap mounting holes on both sides of the headset..
- Align the Top Strap: Align the three holes on each side of the top strap with the corresponding holes on the headset.
- Tighten the Screws: Insert the screws through the holes and use a screwdriver to tighten the screws and secure the top strap.
- Reattach the Foam: Don’t forget to stick the foam layer back over original area after installation is complete.
Step by step
Step 1: Remove the Foam Cover
- Peel off the foam covering the top strap mounting holes on both sides of the headset.
Step 2: Align the Holes
- The top strap has multiple holes on each side, allowing for adjustable placement.
- You can choose different holes based on your personal preference for comfort and fit. Select the holes that provide the best support for your head.

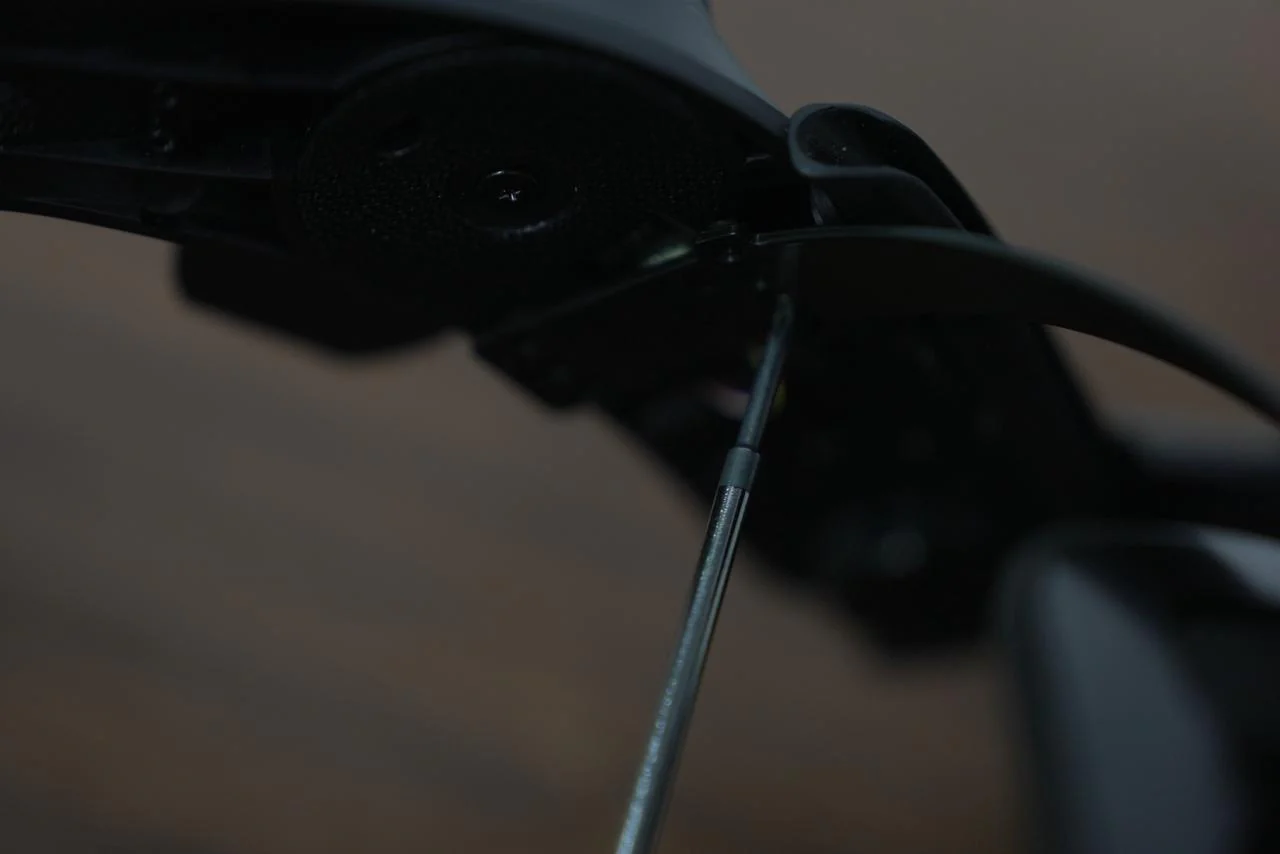

- Once the holes are aligned and you’ve chosen the appropriate hole for the top strap, carefully insert the screws into the holes.

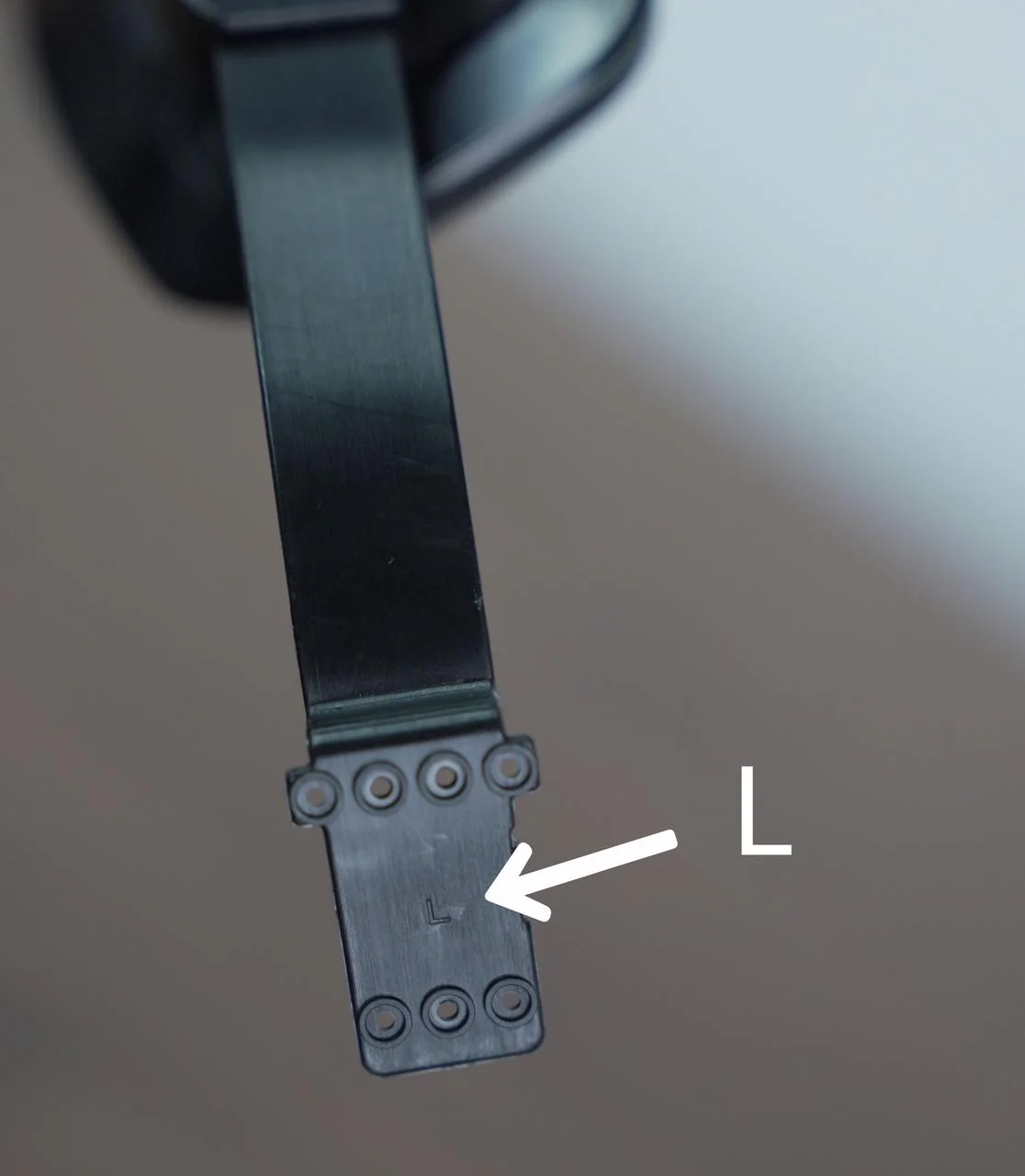

*Note: The top strap is marked with L (Left) and R (Right) on both sides—be sure to properly match these labels with the corresponding sides of the headset to avoid installing it incorrectly. If the holes don’t line up, it’s likely the strap is installed backward.

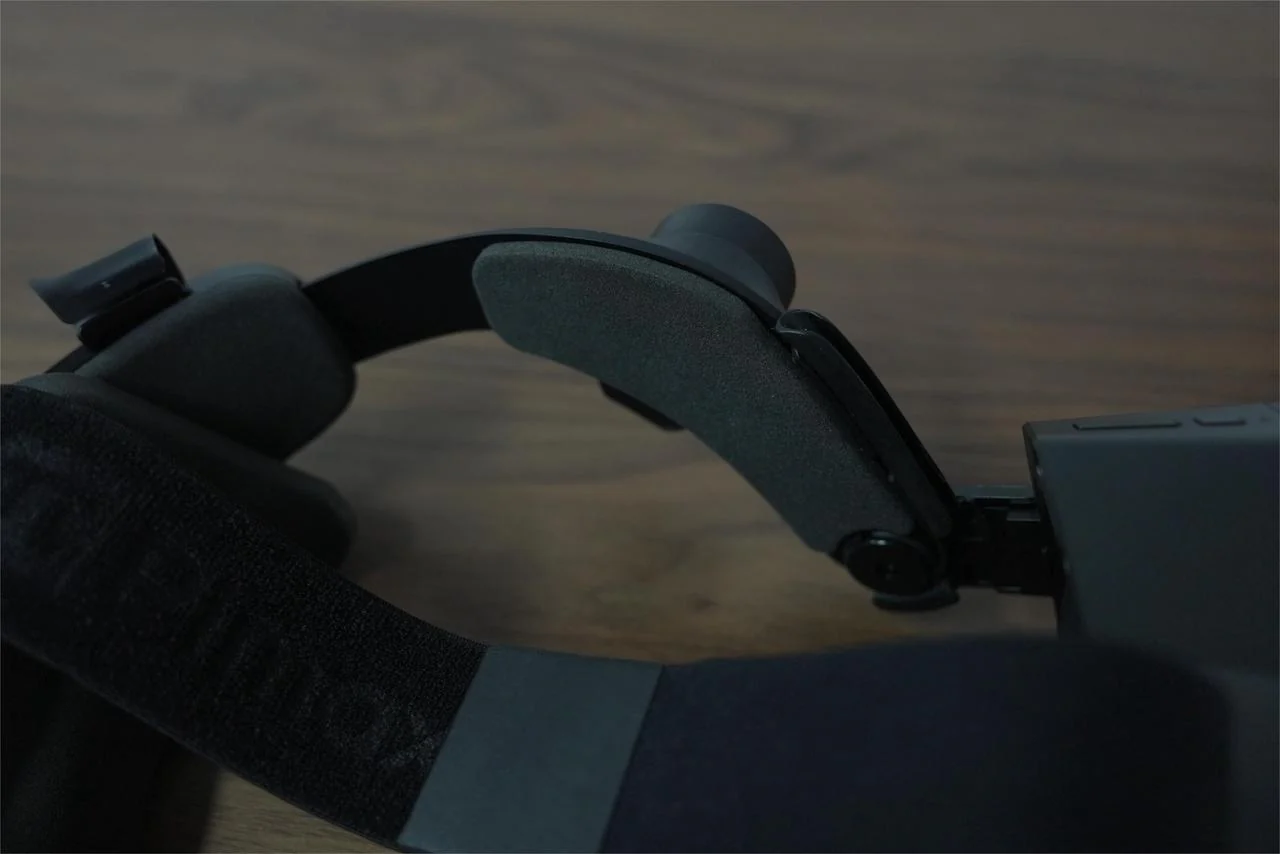

Step 5: Reattach the Foam Cover
- After installation, don’t forget to stick the foam back over the headset.
